I’ve worked for years in industrial automation as well as sensors and cables. Through the years I’ve tested a variety of connectors including those in the M12 series. My job involves working with the connector, assisting in troubleshooting and assisting businesses in selecting the best parts. This manual is based on actual experience and not just theoretical knowledge. Its aim is to make M12 connectors clear and simple to you.

What Is an M12 Connector?

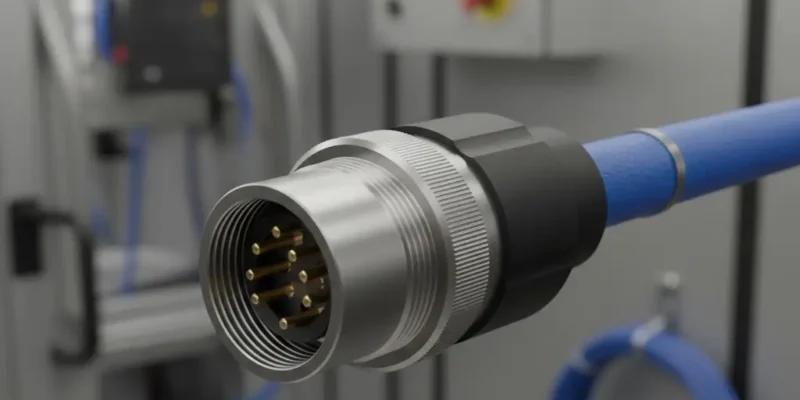

The M12 connector is a tiny circular connector. It features an a 12-millimeter locking thread. The connectors are employed to connect actuators, sensors, and fieldbus network. They are used in factories for automation, robotics and transport systems.

The connector M12 is admired because of its long-lasting nature. It’s resistant to vibration, dust and water. It is perfect for industrial settings that are harsh.

Why Use M12 Connectors?

1. Connectors that are reliable and strong designed for durability. They will not break under the force of vibration. It ensures that a consistent signal for vehicles and machines.

2. Small Size Compact size helps to save space. This is crucial in small industrial installations.

3. Versatile options M12 connectors come in a wide variety of code types. Each connector is suited to a particular usage that ranges from power to data.

4. Weather Resistant A lot of M12 models are weather resistant. They have IP65 (or IP67 ratings. That means that they are resistant to dust and water.

Also Read: Ubuntu vs Linux Mint (2025): Which Linux Distro Is Right for You?

Types of M12 Connectors

There are a variety of coding choices. Each coding specifies the connector’s keying as well as its use.

A-coded used for Sensors and actuators. A-coded is a common signal transmission technique.
B-coded: For Profibus networks.
D-coded: For Ethernet up to 100 Mbps.
Coded X to support high-speed information that exceeds 10 Gbps.
T- and S-coded for power transmission.

In the event of deciding, you must check the the pin number. This will ensure the compatibility.

Comparison Table: Choosing the Right M12 Connector

Type	Main Use	Speed/Power	Notes
A-coded	Sensors/actuators	Signals of low voltage	Most popular type
B-coded	Profibus	Data networks	Limited to Profibus
D-coded	Ethernet	Up to 100 Mbps	Industrial networking
X-coded	High-speed Ethernet	Up to 10 Gbps	For fast data systems
S-coded	Power	AC power	Higher voltage
T-coded	Power	DC power	Power supply that is stable

How to Select the Best M12 Connector

1. Determine Your Application’s Purpose Is it to power or sensors or data? The system of coding will assist you.

2. Be aware of the surroundings If you require factories or outdoors opt for waterproof alternatives. You should look for IP65 or greater rating.

3. Match Pin Count – Check what number of pins you system will require. Uncounted pins can result in problems.

4. Take into consideration the speed and voltage information, choose the appropriate code to ensure bandwidth. To power things, verify the current and voltage limits.

5. Consider the ease of installation Straight and angled connectors can work differently in tight places. Select the one that makes wiring easy.

Final Verdict

Small or beginner projects Begin by using A-coded connectors. They’re easy and flexible.
To set up networking You can choose D-coded, or X-coded based on the speed requirements.
To power systems Utilize Seither T or S-coded systems to safely handle electrical loads.
for harsh or outdoor environments Use only IP67-rated plugs.

The M12 connectors work well, are small, and flexible. The best type is dependent on your specific system’s requirements.

FAQs About M12 Connectors

1. What exactly does “M12” mean? It refers to the 12mm diameter of the thread that locks connectors.

2. Do I have to use any M12 connector with Ethernet? Not. The connector must be D-coded, or X-coded connectors to connect to Ethernet.

3. Are M12 connectors water-proof They are often but not all. You should look at IP65 as well as IP67 ratings to guarantee protection.

4. Are there any possibilities to connect data and power with the same type of M12? Not. Each type of code is developed to perform specific functions. Combining them can result in damage.

5. What are the most popular places where M12 connectors are frequent? They’re employed in manufacturing automation transportation, robotics, as well as industrial sensors.
